Chongqing Formanhao Trading Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | FMH |
| Model Number : | 15B |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1000 PCS / MONTH |
| Delivery Time : | 5-15 days |

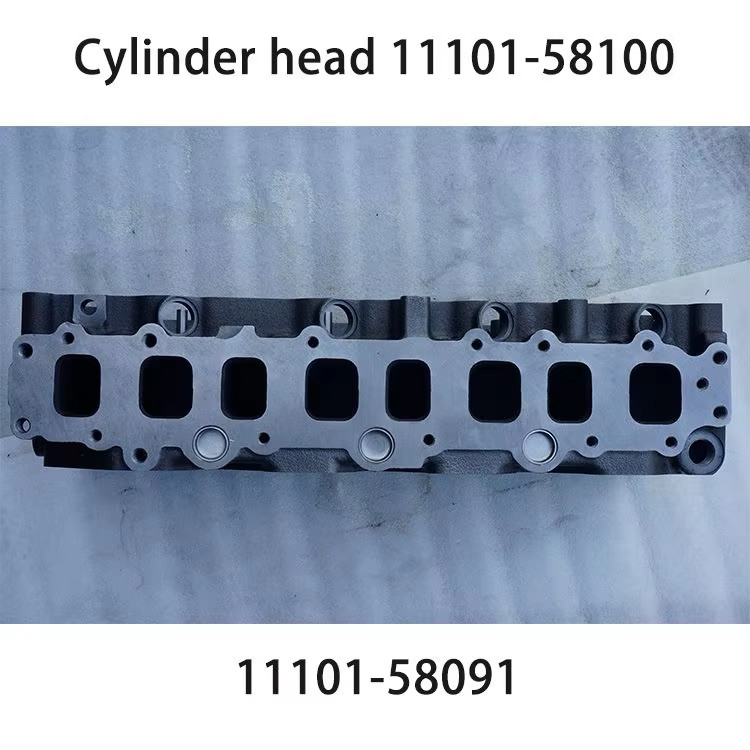

Auto Pars Cast Iron 15B 15B-FTE Cylinder Head 11101-58100/11101-58091 New Toyota Dyna 200 Truck Coaster Mitsubishi Isuzu
The 15B-T was supplied only to the Japanese Armed Forces. Based on a 14B-T, it is presumed to be bored out to a 4.1 L (4104 cc) inline 4 cylinder, eight valve, OHV, direct (mechanical) injection, intercooled, turbocharged diesel engine. It was found in the earliest versions of the BXD-10 Megacruiser before the 1995 release of the 15B-FT. Visually it is nearly identical to the 14B-T but can be distinguished by having no external piston-cooling oil nozzles as found on the 3Bii, 14B and 14B-T versions of the engine block. Both '3B' and '14B' castings are machined off the engine block replaced by a simple '15B' stamp, and a separate '15' casting behind the diesel injection pump. The 15B-T is the only 15B engine to have a Toyota CT26 turbocharger.
The 15B-F is a 4.1 L (4104 cc) inline 4 cylinder, sixteen valve, OHV, direct injection diesel engine. Bore is 108 mm and stroke is 112 mm. Output is 86 kW (115 hp) at 3,200 rpm and 290 N⋅m (214 ft⋅lbf) of torque at 2,000 rpm.
The 15B-FT is a 4.1 L (4104 cc) inline 4 cylinder, sixteen valve, OHV, mechanical injection, turbo, intercooled diesel engine. Bore is 108 mm and stroke is 112 mm. Output is 101 kW (136 hp).
The 15B-FTE is a 4.1 L (4104 cc) inline 4 cylinder, sixteen valve, OHV, electronic direct injection, turbo, intercooled diesel engine. Bore is 108 mm and stroke is 112 mm, with a compression ratio of 17.8:1. Output is 114 kW (153 hp) at 3,200 rpm with 382 N⋅m (282 ft⋅lbf) of torque at 1,800 rpm.
Product Features:
Part Name: | Engine cylinder head |
Engine: | 15B |
OE No.: | 11101-58100 11101-58091 |
Application: | For Toyota Dyna 200 / Coaster / Megacruiser |
| Material: | Cast Iron |
Warranty: | 12 months |
Packing: | Carton Box Package |
Advantages: | Own Cylinder Head Plant + One Stop Shopping Center For Engine Parts |
Payment: | T/T,L/C,Western Union; |
Delivery: | 3-15 days; |
How To Supply Correct Products: | Rely On Drawings and OEM standards For Production For Accuracy; |
Customized Services: | Customized service is supported. We can do it accordingly to drawings or samples. |
Detailed Photos:
Application:
Packing:
Transportation:
FAQ:
Q1: Can you produce per the samples?
A: Yes, we can produce as per your samples or technical drawings.
We have very professional technical team , We can build the molds
and fixtures.
Q2: What is your terms of payment?
A: For stock items , we recommend full payment for fast shipping.
If the items need to be produced , T/T 30% as deposit, and rest
before delivery.
We'll show you the photos of the products and packages for checking
before you pay the balance.
Q3: What is your package?
A: Depends on items , for light heavy goods, We usually pack our
goods in neutral brown cartons , if heavy goods or big quantity ,we
pack it by pallet or wooden box. Also we can customized package for
your band as per your requirements.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5: What is your delivery time?
A: In general, if we have stock ,the goods can be delivered 1-3
days after your payment. If no stock, the specific delivery time will be depended on your order quantity.
Q6: Can you accept sample order?
A: Yes sure. We can supply the sample if we have the parts in
stock.
Q7: Do you test all your items before delivery?
A: Yes, we have 100% test before delivery,we have strictly quality
control policy.
Q8: Which shipment you can supply?
A: By sea, by air ,by train or by express (DHL, FEDEX ,TNT,UPS,EMS
etc.)
|
|
